GT-790 Technical Parameter
Model: GT-790
Item: 2D Payment Scanning Platform
Physical Parameter
Material: ABS
Power Supply: DC 5V ?%
Power Consumption: 520mW(working);540mW(standby);580mW(maximum)
Weight: 270.0g?g(With cable)

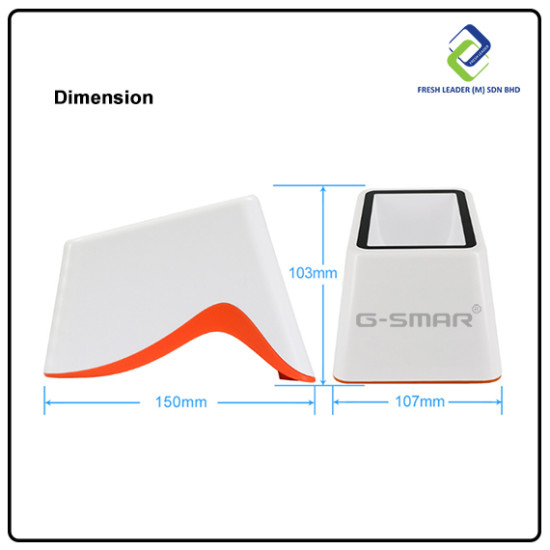

Size: L*W*H:150 * 107 * 103(unit:mm)
Color: Orange+white
Performance Parameter
Interface: USB cable

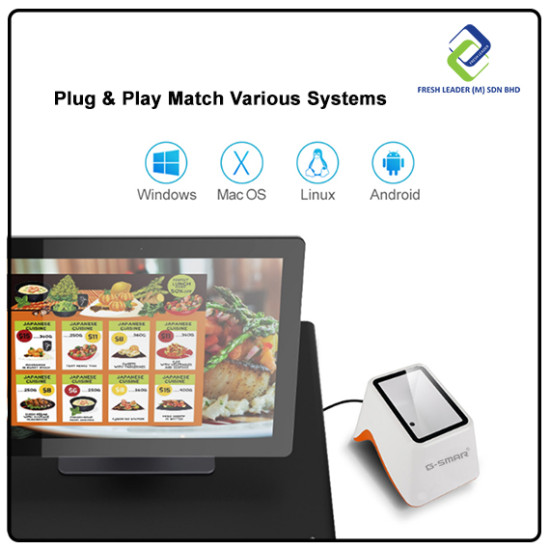

System Supported: Linux,Android,Windows XP,7,8,10
Language Supported: British English,etc.(language can be customized)
Sensor: Planar CMOS sensor;300000 pixels
Light Source: white LED
Professor: 32-bit ARM MCU + DSP
Motion tolerance: code 128:15cm/sec QR:25cm/sec
Resolution: 10mil
Bit error rate: 1/5000000
Reading Mode: Image
Trigger Mode: Auto-Sensing
Prompt Mode: Buzzer, Indicator Light(LED)
Print Contrast: =25%

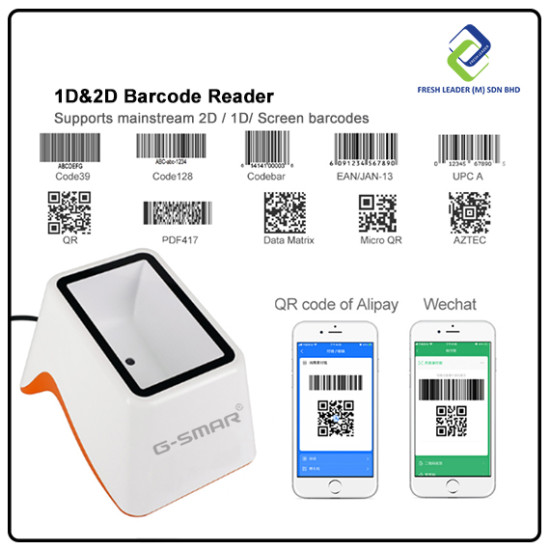

Decoding Capability
*1D:Code128
*2D :QR
Scanning Angel: Roll360? Pitch45?Yew45?
Scanning Depth:WeChat payment code:0cm - 8cm
Alipay payment code:0cm - 12cm
Environment Parameter
IP Grade: IP52
Operating Temp.: 0 to 50? / 32 to 122?
Storage Temp.: 0 to 50? / 32 to 122?
Operating Humidity: 20% to 85%(No Condensation)
Storage Humidity: 20% to 85%(No Condensation)
ESD Protection: 15KV
Shock Resistance: 1.2m free fall on concrete surface
G-Smar Desktop E-payment Code Scanner
RM189.00
Price in reward points: 18900
