Out Of Stock

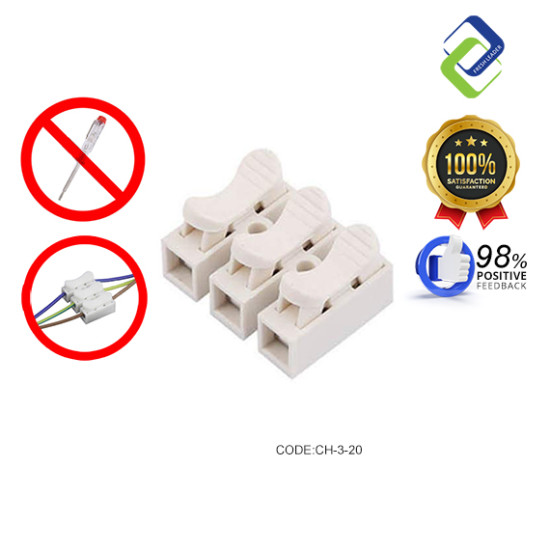

3 Pin Electrical Cable Connectors Cable Clip Quick Splice Lock Wire Terminal, 20units/pack
Description:
These connectors are made from flame-retardant insulation materials, long service life, high
temperature resistant, corrosion-resistant, high-pressure resistant,
high-quality products for your safety. You can use these connectors to connect parts of motors, electrical control, power, household appliances, lighting, machinery, and other wire, saving time and trouble.
Features:
• The shell is made from high standard flame retardant engineering plastic, practical and long service life.
• With a high-quality steel clamp pin of good elasticity and good conductive copper core, connectors can serve the purpose well.
• Fast wire connection operation without drilling screw holes speeds up the wiring process, quite convenient.
• Connect the live wire to the part with L sign, and neutral wire to the part with N sign, the sign is clearly visible.
• There are 10/20/30/50 quick connectors and you can replace the electrical tape with these connectors.
Specifications:
Material: Polypropylene plastic, steel and copper
Voltage: 220V
Current: 10A
Working Temperature: -40~150℃
Wiring: 0.3-2.5mm2(stranded wire), 0.3-1.5mm2(solid wire)
Size: 19.4 x 17.2 x 13.2mm / 0.76 x 0.67 x 0.51"
Quantity: 10pcs / 20pcs / 30pcs / 50pcs (Optional)
Wiring Methods:
1. Press down and hold the end of a connector.
2. Plug a stripped wire head into the connector.
3. Release the end to complete the connection.
Package Includes:
3 Pin Wire Connectors x 10pcs/20pcs/30pcs/50pcs (Optional)
Product Features Highlight
1.MARK OF THE CONNECTOR. The N is the neutral wire, L is a live wire.
2.INDEPENDENT DESIGN. No interference, using insulation flame retardant material and stainless-steel circlip structure, avoiding wires fall off so that the copper conductor of the exposed wire is sealed in the plastic cavity. Avoid arcing, dustproof, moisture-proof.
3.NO TOOLS REQUIRED. Simple operation, saving time, and effort. Hold down the item and press the terminal, and then put the peeled wires into the terminal, finally loose hands and finish the connection.
4.MULTIPURPOSE. Widely used in lighting, power, and automotive wiring, motor, electrical control, household appliances, machinery, and wire joints.
5.NOTICE: Please use it in the rated range. Do not connect high power electrical.
3 Pin Electrical Cable Connectors Cable Clip Quick Splice Lock Wire Terminal, 20units/pack
RM10.00
Price in reward points: 100
